8-to-1 Multiplexer

Overview

  • Purpose: The 8-to-1 Multiplexer is a digital circuit that selects one of eight input signals and forwards it to a single output line, acting as a digitally controlled switch for routing data from multiple sources to a common destination.
  • Symbol: Typically represented as a rectangular block with eight data inputs (D0-D7), three select inputs (S0-S2), and one output (Y).
  • DigiSim.io Role: Serves as a fundamental component in digital systems for data selection, path routing, and reducing hardware complexity by enabling multiple data sources to share a common pathway.

multiplexer 8to1 component

Functional Description

Logic Behavior

The 8-to-1 Multiplexer routes one of its eight input signals to the output based on the binary value of the three select lines. The select lines function as a 3-bit address that determines which input channel is connected to the output.

Truth Table:

S2 S1 S0 Output Y
0 0 0 D0
0 0 1 D1
0 1 0 D2
0 1 1 D3
1 0 0 D4
1 0 1 D5
1 1 0 D6
1 1 1 D7

Inputs and Outputs

  • Inputs:

    • D0-D7: Eight 1-bit data inputs, one of which will be routed to the output.
    • S0: Least Significant Bit (LSB) of the 3-bit select input.
    • S1: Middle bit of the 3-bit select input.
    • S2: Most Significant Bit (MSB) of the 3-bit select input.

  • Outputs:

    • Y: Single 1-bit output that reflects the value of the selected input.

Configurable Parameters

  • Enable Control: Some implementations include an additional enable input that can disable the output.
  • Output Type: Standard, three-state, or open-collector output configurations.
  • Active Levels: Whether select inputs and enable signals are active-high or active-low.
  • Propagation Delay: The time it takes for the output to reflect changes on the selected input.

Visual Representation in DigiSim.io

The 8-to-1 Multiplexer is displayed as a rectangular block with eight data input pins (D0-D7) and three select input pins (S0-S2) on the left side, and a single output pin (Y) on the right side. When connected in a circuit, the component visually indicates the active data path through color changes on connecting wires.

Educational Value

Key Concepts

  • Data Selection: Demonstrates how digital systems choose between multiple data sources.
  • Binary Addressing: Shows how binary codes can select specific input channels.
  • Signal Routing: Illustrates fundamental concepts of data pathways and switching.
  • Resource Sharing: Emphasizes how multiple sources can share a common destination.
  • Digital Control: Presents the concept of using digital signals to control signal flow.

Learning Objectives

  • Understand how multiplexers select between multiple input signals based on select line values.
  • Learn the relationship between binary select codes and input selection.
  • Recognize how multiplexers enable efficient resource sharing in digital systems.
  • Apply multiplexer concepts in designing data routing and selection circuits.
  • Comprehend the role of multiplexers in data conversion, communication, and control systems.
  • Develop skills in analyzing and designing signal routing in digital systems.

Usage Examples/Scenarios

  • Data Bus Selection: Connecting one of eight data sources to a common data bus.
  • ALU Operation Selection: Choosing between different arithmetic or logic operation results.
  • Memory Address Multiplexing: Selecting between different portions of memory addresses.
  • Parallel-to-Serial Conversion: Sequentially selecting bits from a parallel word to create a serial stream.
  • Test Equipment: Routing one of multiple test points to measurement equipment.
  • Function Generation: Selecting between different function generators or waveforms.
  • Input Device Selection: Choosing between multiple input peripherals in a computer system.
  • Signal Source Selection: Routing one of multiple signal sources to a processing unit.

Technical Notes

  • The 8-to-1 multiplexer can be implemented using a 3-to-8 decoder and additional logic gates.
  • Selection formula: Y = D(S2×4 + S1×2 + S0), essentially converting the binary select value to the corresponding input.
  • Propagation delay is typically 5-20ns depending on technology, with select-to-output changes usually slower than data-to-output changes.
  • Momentary glitches may occur during select line transitions when multiple bits change simultaneously.
  • Tree implementations using cascaded 2-to-1 multiplexers (requiring seven 2-to-1 MUXes) offer more uniform timing.
  • Common IC implementations include the 74151 (single 8-to-1 multiplexer) and 74251 (with three-state output).
  • In DigiSim.io, the multiplexer accurately models the selection behavior of real multiplexer circuits, showing proper signal routing based on select inputs.

Characteristics

  • Input Configuration:

    • Eight data inputs (D0-D7)
    • Three select inputs (S0-S2)
    • Select lines determine which data input is routed to the output
    • Compatible with standard digital logic levels
    • Typical input impedance is high

  • Output Configuration:

    • Single output (Y)
    • Output reflects the selected input signal
    • Fan-out capabilities depend on technology implementation
    • May include additional output features in some implementations (e.g., enable/disable)

  • Functionality:

    • Selects one of eight input data lines based on the binary value of the select inputs
    • Selection formula: Y = D(S2×4 + S1×2 + S0)
    • Functions as a controlled data switch
    • Non-blocking (only one path active at a time)
    • No data transformation (input passed unchanged to output)

  • Propagation Delay:

    • Data input to output: 5-15ns typical
    • Select input to output: 7-20ns typical
    • Technology dependent (TTL, CMOS, BiCMOS, etc.)
    • May exhibit different delays for different input channels
    • Select line transitions may cause output glitches

  • Fan-Out:

    • Typically drives 10-20 standard loads
    • Output loading affects propagation delay
    • May require buffers for high fan-out applications

  • Power Consumption:

    • Static power depends on technology (minimal for CMOS)
    • Dynamic power increases with switching frequency
    • Power consumption proportional to voltage squared
    • Select line transitions consume additional power
    • Modern implementations are very power efficient

  • Circuit Complexity:

    • Moderate complexity
    • Typically implemented with decoders and gates
    • Requires 3-to-8 decoder and 8 transmission gates or AND/OR logic
    • Scales exponentially with number of select lines
    • Can be cascaded for wider selection capabilities

Implementation Methods

  1. Discrete Logic Implementation

    • Built from basic gates (AND, OR, NOT)
    • Uses 3-to-8 decoder followed by AND gates and OR gate
    • Higher component count but flexible design
    • Can be adapted for special requirements
    • More suitable for educational purposes or specialized applications

  2. Transmission Gate Approach

    • Uses CMOS transmission gates as switches
    • Lower power consumption
    • Better signal integrity for analog signals
    • Minimal signal degradation
    • Bidirectional capability in some configurations

  3. Integrated Circuit Implementation

    • Available as dedicated multiplexer ICs
    • Common in 74xx series logic families
    • Examples: 74151 (single 8-to-1 MUX), 74251 (with 3-state output)
    • Various technology options (TTL, CMOS, BiCMOS)
    • May include additional features like enable/strobe inputs

  4. Decoder-Based Approach

    • Uses 3-to-8 decoder to generate selection signals
    • Each decoder output enables one data path
    • Common in educational contexts
    • Modular design approach
    • Easily understood operation

  5. Tree-Based Implementation

    • Cascaded 2-to-1 multiplexers in a tree structure
    • Three levels of 2-to-1 MUXes (7 total)
    • Reduced propagation delay for some paths
    • More uniform timing characteristics
    • Simpler building blocks

  6. FPGA/ASIC Implementation

    • Implemented using Look-Up Tables (LUTs) or dedicated multiplexer cells
    • Configurable for specific performance requirements
    • Optimized for speed, area, or power
    • May leverage specialized routing resources
    • Can be combined with other functions for efficiency

Applications

  1. Data Selection and Routing

    • Selecting between multiple data sources
    • Bus multiplexing in computer systems
    • Address/data multiplexing in memory interfaces
    • Channel selection in communication systems
    • Peripheral selection in microcontroller systems

  2. Parallel-to-Serial Conversion

    • Loading parallel data into shift registers
    • Time-division multiplexing
    • Serializing parallel data streams
    • Data formatting and packetization
    • Scan path testing implementation

  3. Arithmetic and Logic Operations

    • Function selection in ALUs
    • Implementing complex combinational logic
    • Look-up table implementation for functions
    • Programmable logic arrays
    • Truth table implementation

  4. Signal Processing

    • Signal path selection in audio/video equipment
    • Channel selection in data acquisition systems
    • Sample-and-hold multiplexing
    • Sensor input selection
    • Signal routing in DSP applications

  5. Memory Systems

    • Address multiplexing in DRAM interfaces
    • Bank selection in memory systems
    • Memory chip selection
    • Cache access control
    • Memory interleaving

  6. Control Systems

    • Mode selection in state machines
    • Control path switching
    • Redundant system switching
    • Test and debug path selection
    • Configuration selection

  7. Waveform Generation

    • Selecting different waveform sources
    • Programmable function generators
    • Sequence generation
    • Pattern generation for testing
    • Audio synthesis applications

Limitations

  1. Propagation Delay

    • Significant delay from select to output
    • Different delay paths for different inputs
    • Delay increases with loading
    • Critical in high-speed applications
    • May cause timing violations in synchronous systems

  2. Glitching During Selection Changes

    • Momentary invalid outputs during select transitions
    • Can propagate errors in sequential systems
    • May require synchronization with system clock
    • Hazards in select line decoding logic
    • More pronounced with certain implementation methods

  3. Fan-Out Limitations

    • Output drive capability constraints
    • May require buffering for multiple loads
    • Signal degradation with high capacitive loading
    • Increased delay with higher fan-out
    • Select line loading can affect performance

  4. Scalability Challenges

    • Complexity increases exponentially with input count
    • Larger multiplexers require more select lines
    • Increased power consumption with size
    • Physical layout becomes challenging
    • Propagation delay increases with size

  5. Signal Integrity Issues

    • Crosstalk between closely routed channels
    • Signal attenuation in some implementations
    • Noise sensitivity varies by implementation
    • Charge injection in CMOS transmission gates
    • Supply voltage sensitivity

Circuit Implementation Detail

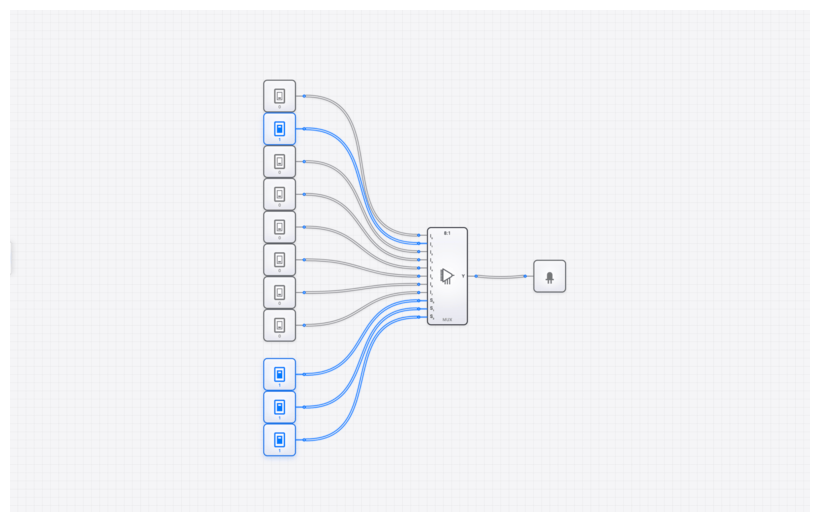

Basic 8-to-1 MUX using AND-OR Logic

graph TD
    D0[D0] --> AND0[AND Gate 0]
    S0N[S0'] --> AND0
    S1N[S1'] --> AND0
    S2N[S2'] --> AND0

    D1[D1] --> AND1[AND Gate 1]
    S0[S0] --> AND1
    S1N --> AND1
    S2N --> AND1

    D2[D2] --> AND2[AND Gate 2]
    S0N --> AND2
    S1[S1] --> AND2
    S2N --> AND2

    D3[D3] --> AND3[AND Gate 3]
    S0 --> AND3
    S1 --> AND3
    S2N --> AND3

    D4[D4] --> AND4[AND Gate 4]
    S0N --> AND4
    S1N --> AND4
    S2[S2] --> AND4

    D5[D5] --> AND5[AND Gate 5]
    S0 --> AND5
    S1N --> AND5
    S2 --> AND5

    D6[D6] --> AND6[AND Gate 6]
    S0N --> AND6
    S1 --> AND6
    S2 --> AND6

    D7[D7] --> AND7[AND Gate 7]
    S0 --> AND7
    S1 --> AND7
    S2 --> AND7

    AND0 --> OR[OR Gate]
    AND1 --> OR
    AND2 --> OR
    AND3 --> OR
    AND4 --> OR
    AND5 --> OR
    AND6 --> OR
    AND7 --> OR

    OR --> Y[Output Y]
