Pixel Screen (16x16)

Overview

• Purpose: The Pixel Screen (16x16) is a visualization component that displays a 16x16 grid of pixels, with each pixel's state determined by memory values. This component is useful for creating simple graphics, displaying patterns, or visualizing memory contents in your digital circuits.
• Symbol: The Pixel Screen is represented by a rectangular display grid with connection pins for address bus, data bus, and control signals.
• DigiSim.io Role: Provides visual output capability for digital circuits, enabling graphics display, pattern visualization, and memory content monitoring.

Functional Description

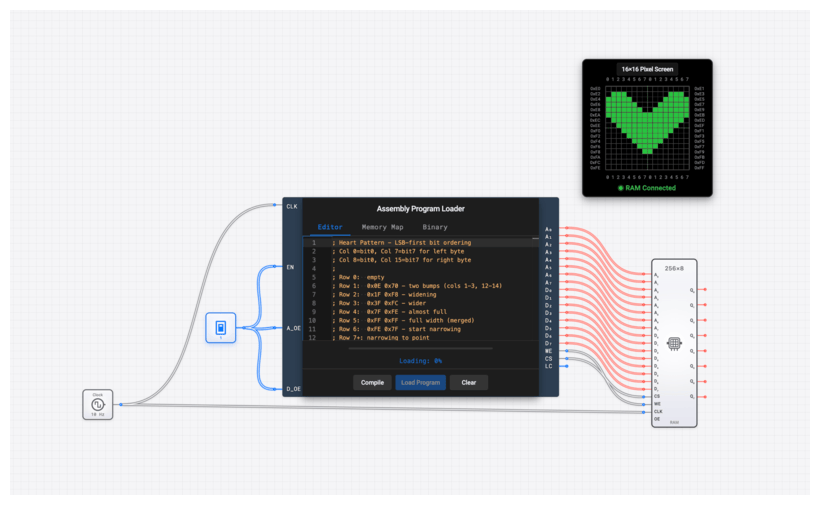

The Pixel Screen component reads its display data from a connected RAM component, interpreting each bit in memory as a pixel that can be either on or off. The component offers a resolution of 16x16 pixels (256 pixels total), which requires 32 bytes of memory to represent (1 bit per pixel).

Pins

Pin Name	Type	Description
ADDR_BUS[7:0]	Input	8-bit address bus connecting to the RAM component
DATA_BUS[7:0]	Input	8-bit data bus connecting to the RAM component
CLK	Input	Clock signal for synchronizing updates
REFRESH	Input	Triggers a manual refresh of the display when pulsed HIGH

Configuration

The Pixel Screen has several configurable properties:

1. Start Address: The starting memory address where the display data begins (default: 0xE0)
2. Foreground Color: The color of active (ON) pixels
3. Background Color: The color of inactive (OFF) pixels
4. Pixel Scale: The size of each pixel in the display

Memory Mapping

The 16x16 pixel grid is mapped to memory as follows:

• Each byte in memory represents 8 horizontal pixels
• 32 consecutive bytes (256 bits) are used for the entire display
• Bits are mapped from MSB to LSB within each byte

For example, with a start address of 0xE0:

Address	Byte	Description
0xE0	[76543210]	First 8 pixels of row 0
0xE1	[76543210]	Last 8 pixels of row 0
0xE2	[76543210]	First 8 pixels of row 1
0xE3	[76543210]	Last 8 pixels of row 1
...	...	...
0xFE	[76543210]	First 8 pixels of row 15
0xFF	[76543210]	Last 8 pixels of row 15

Note: Bits 7-0 within each byte represent 8 horizontal pixels, mapped from MSB to LSB

Usage

To use the Pixel Screen component:

1. Add the component to your circuit alongside a RAM component

2. Connect the ADDR_BUS and DATA_BUS pins to the corresponding pins on your RAM component

3. Set the Start Address to specify where in RAM the display data begins

4. Write bit patterns to the memory addresses to create your display:

   • Write a 1 to turn a pixel ON
   • Write a 0 to turn a pixel OFF

5. Use the CLK input to synchronize display updates with your circuit's clock

6. Optionally use the REFRESH input to manually update the display when needed

Example Applications

Simple Pattern Display

// Store a checkerboard pattern
// First row (alternating pixels)
RAM[0xE0] = 0b10101010;
RAM[0xE1] = 0b10101010;
// Second row (inverted pattern)
RAM[0xE2] = 0b01010101;
RAM[0xE3] = 0b01010101;
// Repeat pattern for remaining rows...

16x16 Sprite Display

// Display a simple face
// Eyes (rows 4-5)
RAM[0xE8] = 0b00100100;
RAM[0xE9] = 0b00000000;
RAM[0xEA] = 0b00100100;
RAM[0xEB] = 0b00000000;
// Mouth (row 10)
RAM[0xF4] = 0b00011000;
RAM[0xF5] = 0b00100100;

Creating Animations

To create animations:

1. Update the RAM contents for each frame
2. Use a clock divider to control the refresh rate
3. Synchronize RAM writes with the display's refresh cycle to prevent flickering

Tips and Tricks

• Use a separate RAM area as a "back buffer" to prepare the next frame, then copy it to the display area to prevent flickering
• Create drawing routines to set individual pixels by calculating the appropriate bit and byte
• For color effects, you can modify the foreground and background colors through the component's properties
• Combine with other components like counters or control units to create autonomous displays
• For smooth animations, ensure your circuit updates the display at a consistent rate
