1-to-4 Demultiplexer

Overview

  • Purpose: The 1-to-4 Demultiplexer (DEMUX) is a digital circuit that routes a single input signal to one of four possible output lines based on the values of two selection lines. It functions as a data distributor, directing input data to a selected destination.
  • Symbol: The 1-to-4 Demultiplexer is represented by a rectangular block with one data input (D), two select inputs (S1, S0), and four data outputs (Y0-Y3).
  • DigiSim.io Role: Serves as a fundamental data distribution component in digital circuits, enabling selective signal routing to multiple destinations and forming the basis for address decoding and data distribution networks.

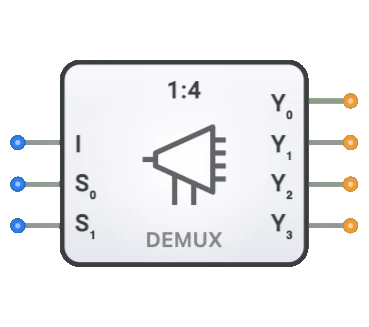

demultiplexer 1to4 component

Functional Description

Logic Behavior

The 1-to-4 Demultiplexer directs its single input to one of four outputs based on the binary value of the selection inputs. The select inputs act as a 2-bit binary number that determines which output will receive the input value. All other outputs remain at logic 0.

Truth Table:

S1 S0 Y0 Y1 Y2 Y3 Active Output
0 0 D 0 0 0 Output 0
0 1 0 D 0 0 Output 1
1 0 0 0 D 0 Output 2
1 1 0 0 0 D Output 3

Note: D is the data input value; only one output is active at a time.

Inputs and Outputs

  • Inputs:

    • D: 1-bit data input that is routed to the selected output.
    • S1, S0: Two 1-bit select inputs that determine which output receives the input data.
    • Some implementations may include an additional enable input (EN) that can disable all outputs.

  • Outputs:

    • Y0, Y1, Y2, Y3: Four 1-bit data outputs, only one of which is active (equals D) at a time.

Configurable Parameters

  • Output Type: Whether the inactive outputs are LOW or high-impedance.
  • Enable Control: Some implementations include an enable input that can deactivate all outputs.
  • Active Level: Whether the demultiplexer operates with active-high or active-low logic.
  • Propagation Delay: The time it takes for the outputs to change after the select inputs change.

Visual Representation in DigiSim.io

The 1-to-4 Demultiplexer is displayed as a rectangular block with labeled inputs on the left side (D, S1, S0) and outputs (Y0, Y1, Y2, Y3) on the right side. When connected in a circuit, the component visually indicates the active data path through color changes on connecting wires, showing which output is currently selected to receive the input value.

Educational Value

Key Concepts

  • Signal Distribution: Demonstrates how digital systems selectively route data to multiple destinations.
  • Binary Decoding: Illustrates how binary values control signal paths in digital circuits.
  • Address Decoding: Shows the fundamental mechanism used in memory and I/O address selection.
  • Data Routing: Presents how a single source can be connected to one of several possible destinations.
  • Combinational Logic: Reinforces understanding of how logic gates implement data routing functions.

Learning Objectives

  • Understand how digital systems distribute signals based on selection controls.
  • Learn how binary select values determine which output receives the input data.
  • Recognize the inverse relationship between multiplexers and demultiplexers.
  • Apply demultiplexer concepts to design address decoders, data distribution networks, and control systems.
  • Comprehend how demultiplexers expand limited control signals to multiple endpoints.

Usage Examples/Scenarios

  • Address Decoding: Selecting specific memory chips or I/O devices based on address bits.
  • Data Distribution: Routing data to one of several possible destinations.
  • I/O Port Expansion: Expanding a single output port to control multiple devices.
  • Time-Division Demultiplexing: Separating time-multiplexed signals back into individual channels.
  • Control Signal Routing: Directing control signals to specific subsystems based on operation codes.
  • Display Systems: Selecting individual digits or segments in multiplexed displays.

Technical Notes

  • The 1-to-4 demultiplexer can be implemented using basic logic gates (typically 4 AND gates and 2 inverters).
  • It can also be constructed by combining a 2-to-4 decoder with AND gates to gate the input data.
  • The Boolean expressions for the outputs are:
    • Y0 = D · !S1 · !S0
    • Y1 = D · !S1 · S0
    • Y2 = D · S1 · !S0
    • Y3 = D · S1 · S0
  • Larger demultiplexers (1-to-8, 1-to-16) can be built by adding more select inputs.
  • Demultiplexers and decoders are closely related; a demultiplexer can be viewed as a decoder with an enable input.
  • Active-low demultiplexers produce a LOW output on the selected line and HIGH on all others.
  • In DigiSim.io, the demultiplexer's behavior simulates real-world digital components with proper handling of select transitions.

Characteristics

  • Input Configuration:
    • One data input (D)
    • Two select inputs (S1, S0) to choose among 4 outputs
  • Output Configuration:
    • Four outputs (Y0, Y1, Y2, Y3)
    • Only one output active at a time
  • Propagation Delay:
    • Typically 5-15ns (technology dependent)
    • Delay from select change to output change
    • Delay from data input change to output change
  • Power Consumption:
    • Low to moderate
    • Increases with switching frequency
  • Fan-Out:
    • Each output typically drives 10-50 gates (technology dependent)
  • Logic Levels:
    • Compatible with standard logic families (TTL, CMOS)
  • Circuit Complexity:
    • Medium (requires 4 AND gates and 2 inverters in basic implementation)
  • Speed:
    • Faster than larger demultiplexers (1-to-8, 1-to-16)
    • Suitable for medium-speed applications
  • Signal Integrity:
    • Maintains signal integrity at outputs
    • No signal degradation through the selection path

Implementation Methods

  1. Using Basic Logic Gates
    • Implemented using AND gates and inverters
    • Each output is gated with a unique combination of select lines
graph TB
    DataIn[Data Input D] --> AndGate0[AND Gate]
    DataIn --> AndGate1[AND Gate]
    DataIn --> AndGate2[AND Gate]
    DataIn --> AndGate3[AND Gate]

    Select0[S0] --> NotGate0[NOT]
    Select1[S1] --> NotGate1[NOT]

    NotGate0 --> AndGate0
    NotGate1 --> AndGate0

    Select0 --> AndGate1
    NotGate1 --> AndGate1

    NotGate0 --> AndGate2
    Select1 --> AndGate2

    Select0 --> AndGate3
    Select1 --> AndGate3

    AndGate0 --> OutputY0[Y0 Output]
    AndGate1 --> OutputY1[Y1 Output]
    AndGate2 --> OutputY2[Y2 Output]
    AndGate3 --> OutputY3[Y3 Output]

Selection Logic:

  • Y0: S1=0, S0=0 (both inverted)
  • Y1: S1=0, S0=1
  • Y2: S1=1, S0=0
  • Y3: S1=1, S0=1
  1. Using a Decoder with Input Gating
    • 2-to-4 decoder generates selection signals
    • Each decoder output is ANDed with the data input
graph LR
    S0[S0] --> DEC[2-to-4 Decoder]
    S1[S1] --> DEC

    DEC -->|E0| AND0[AND]
    DEC -->|E1| AND1[AND]
    DEC -->|E2| AND2[AND]
    DEC -->|E3| AND3[AND]

    D[Data D] --> AND0
    D --> AND1
    D --> AND2
    D --> AND3

    AND0 --> Y0[Y0]
    AND1 --> Y1[Y1]
    AND2 --> Y2[Y2]
    AND3 --> Y3[Y3]

Operation: Decoder selects one enable line based on S1:S0, AND gates route data to selected output.

  1. Using Multiplexers in Reverse

    • Connecting the data input to all inputs of a multiplexer
    • Using the outputs as enable signals for tristate buffers

  2. Integrated Circuits

    • Available in 74xx series logic families (e.g., 74139, 74HC139)
    • Often provided as dual 1-to-4 demultiplexers in a single package

Applications

  1. Data Distribution

    • Routing a single data source to multiple destinations
    • Channel selection in communication systems
    • Time-division demultiplexing in telecommunications

  2. Memory Systems

    • Address decoding for memory chip selection
    • Memory bank selection in multi-bank systems
    • Register selection in register files

  3. Digital Control Systems

    • Control signal distribution
    • Command routing in microprocessor systems
    • Mode selection in multi-mode devices

  4. I/O Port Expansion

    • Expanding limited I/O ports in microcontrollers
    • Serial-to-parallel data conversion
    • Peripheral device selection

  5. Signal Routing

    • Routing clock or control signals to specific subsystems
    • Bus control in multi-device systems
    • Signal distribution in testing equipment

  6. Decoder Expansion

    • Creating larger decoders (e.g., 3-to-8, 4-to-16)
    • Memory address decoding in larger memory systems
    • Command decoding in complex instruction sets

  7. Display Systems

    • Digit selection in multiplexed displays
    • Segment routing in LED/LCD display systems
    • Pixel addressing in small display matrices

Limitations

  1. Output Activation Limitation

    • Only one output active at a time
    • Cannot distribute data to multiple outputs simultaneously

  2. Select Line Dependencies

    • Select lines must be stable before valid output is available
    • Glitches can occur during select line transitions

  3. Propagation Delay

    • Signal delay through the demultiplexer can affect timing in high-speed systems
    • Delay increases slightly with number of outputs

  4. Fan-out Limitations

    • Each output has limited drive capability
    • May require buffers for high fan-out applications

  5. Power Consumption

    • Increases with switching frequency
    • Idle outputs still consume static power in some implementations

Circuit Implementation Detail

Boolean Expressions

The 1-to-4 demultiplexer can be described by the following Boolean expressions:

Y0 = D · !S1 · !S0
Y1 = D · !S1 · S0
Y2 = D · S1 · !S0
Y3 = D · S1 · S0

Where:

  • D is the data input
  • S1, S0 are the select inputs
  • Y0, Y1, Y2, Y3 are the outputs
  • "·" represents logical AND
  • "!" represents logical NOT

Implementation Analysis

In the gate-level implementation, each output is enabled by a unique combination of the select lines:

  • Y0 is active when S1=0 and S0=0
  • Y1 is active when S1=0 and S0=1
  • Y2 is active when S1=1 and S0=0
  • Y3 is active when S1=1 and S0=1

Related Components

  • 1-to-2 Demultiplexer: Simpler version with one select line and two outputs
  • 1-to-8 Demultiplexer: Extended version with three select lines and eight outputs
  • 1-to-16 Demultiplexer: Larger version with four select lines and sixteen outputs
  • 4-to-1 Multiplexer: Performs the inverse operation, selecting one of multiple inputs
  • 2-to-4 Decoder: Similar component but activates one of multiple outputs based on binary input
  • Encoder: Performs the inverse operation of a decoder
  • Bus Driver: Often combined with demultiplexers for bus-oriented systems
  • Tristate Buffer: Used in demultiplexer implementations for shared bus applications

school Learning Path

arrow_back Prerequisites

Demultiplexer (1-to-2)

arrow_forward Next Steps

Demultiplexer (1-to-8) Decoder (3-to-8)

help_outline Frequently Asked Questions

How does a 1-to-4 DEMUX work?

One input is routed to one of 4 outputs based on 2 select lines. Unselected outputs remain LOW while the selected output follows the input.

Where are 1-to-4 DEMUXes used?

Memory chip selection, distributing serial data to parallel outputs, and routing signals to specific devices in a system.

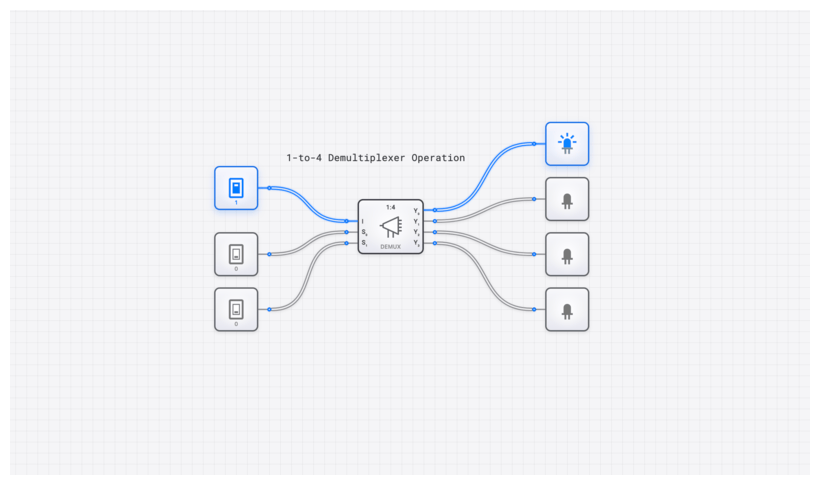

play_arrow Run Live Circuit
