Multiplexer

Overview

Purpose: The Multiplexer (MUX) is a digital component that selects one of several input signals and forwards it to a single output line. It functions as a digitally controlled switch that routes one of multiple input data lines to the output.
Symbol: The Multiplexer is represented by a rectangular block with multiple data inputs, select inputs, and a single output.
DigiSim.io Role: Serves as a fundamental data selection component in digital circuits, enabling signal routing, data bus control, and implementation of complex combinational functions.

multiplexer component

Functional Description

Logic Behavior

The Multiplexer uses select inputs to determine which data input is connected to the output. The number of select lines determines how many data inputs can be controlled (2^n inputs for n select lines).

Truth Table (for a 4-to-1 Multiplexer):

Select (S1 S0)	Output
00	I0
01	I1
10	I2
11	I3

Inputs and Outputs

Inputs:
- Data Inputs (I0, I1, I2, ..., IN-1): 1-bit inputs, one of which will be selected as the output.
- Select Inputs (S0, S1, ..., SN-1): Control inputs that determine which data input appears at the output. For an N-input multiplexer, log₂(N) select lines are required.
- Enable Input (optional): When present, enables/disables the multiplexer operation.
Output:
- Output (Y): 1-bit output that reflects the value of the selected input.

Configurable Parameters

Number of Inputs: The multiplexer can be configured with different numbers of inputs (2:1, 4:1, 8:1, etc.).
Propagation Delay: The time it takes for the output to change after a select or input change.

Visual Representation in DigiSim.io

The Multiplexer is displayed as a rectangular block with data inputs on one side (typically the left) and select inputs usually at the bottom. The output is on the opposite side of the data inputs. When connected in a circuit, the component visually indicates the active data path and logic states through color changes on connecting wires.

Educational Value

Key Concepts

Data Selection: Demonstrates the concept of choosing one signal from multiple options.
Digital Switching: Illustrates how digital systems route data dynamically.
Binary Encoding: Shows how binary select values correspond to specific data paths.
Combinational Logic: Introduces how complex logic functions can be implemented using multiplexers.

Learning Objectives

Understand how multiplexers direct the flow of data in digital systems.
Learn how binary select codes determine which input is routed to the output.
Recognize the role of multiplexers in creating larger digital systems.
Apply multiplexers to implement various combinational logic functions.
Comprehend how multiplexers can reduce component count in certain circuit designs.

Usage Examples/Scenarios

Data Selection: Selecting one of multiple data sources to be processed.
Bus Systems: Controlling which device gets access to a shared data bus.
Logic Implementation: Implementing any combinational logic function by using a multiplexer with constants and variables as inputs.
Parallel-to-Serial Conversion: Selecting bits sequentially from a parallel input.
Memory Systems: Addressing and selecting specific memory cells or words.

Technical Notes

The number of select lines (S) and the number of data inputs (I) have a relationship: 2^S = I. For example, a 4-to-1 multiplexer requires 2 select lines.
Cascading multiple multiplexers allows the creation of larger multiplexers. For example, two 4:1 multiplexers and one 2:1 multiplexer can create an 8:1 multiplexer.
Multiplexers can be combined with demultiplexers to create bidirectional data routing systems.
In physical implementations, multiplexers may experience brief output glitches during select line transitions.

Characteristics

Channel Count: Described as N:1 (e.g., 2:1, 4:1, 8:1, 16:1)
Select Lines: log₂(N) select inputs to choose among N data inputs
Propagation Delay: Time between input change and stable output
Fan-Out: Number of logic gates it can drive
Power Consumption: Typically increases with channel count
Enable Control: Some multiplexers include an enable input
Data Width: Can be 1-bit or multi-bit (bus multiplexers)
Glitch Immunity: Quality of avoiding transient incorrect outputs during transitions

Types of Multiplexers

Binary Multiplexers
- 2:1 (1 select line)
- 4:1 (2 select lines)
- 8:1 (3 select lines)
- 16:1 (4 select lines)
Bus Multiplexers
- Handle multiple bits in parallel
- Common widths: 4-bit, 8-bit, 16-bit, 32-bit
Analog Multiplexers
- Switch analog signals
- Maintain signal integrity with low resistance when on
Tree Multiplexers
- Constructed by cascading smaller multiplexers
- Used for large-scale implementations
Bidirectional Multiplexers
- Allow signal flow in either direction
- Used in bidirectional buses

Applications

Data Selection and Routing
- Selecting between multiple data sources
- Memory address multiplexing in DRAM
- Bus arbitration in computer systems
Communication Systems
- Time-division multiplexing (TDM) for channel sharing
- Line selection in telecommunications
- Network switching applications
Logic Implementation
- Implementing boolean functions
- Look-up tables (LUTs) in FPGAs
- Programmable logic arrays
Testing and Debugging
- Signal probing and monitoring
- Test point selection
- Diagnostic signal routing
Arithmetic Circuits
- ALU function selection
- Conditional operations
- Bit manipulation functions
Control Systems
- Operation mode selection
- Signal path configuration
- State machine implementations

Implementation

Multiplexers can be implemented using:

Basic Logic Gates
- AND, OR, and NOT gates
- Transmission gates
Integrated Circuits
- 74xx series:
  - 74157: Quad 2:1 multiplexer
  - 74153: Dual 4:1 multiplexer
  - 74151: 8:1 multiplexer
  - 74150: 16:1 multiplexer
Transistor-Level
- CMOS pass transistors
- Transmission gates
- Tri-state buffers
HDL Designs (Verilog/VHDL)
- Case statements
- Conditional assignments
- Parameterized designs

Circuit Implementation (2:1 MUX)

A basic 2:1 multiplexer can be implemented using basic logic gates:

AND-OR Gate Implementation

graph LR
    Input0[Input I0] --> AndGate0[AND Gate]
    SelectS[Select S] --> NotGate[NOT Gate]
    NotGate --> AndGate0

    Input1[Input I1] --> AndGate1[AND Gate]
    SelectS --> AndGate1

    AndGate0 --> OrGate[OR Gate]
    AndGate1 --> OrGate
    OrGate --> OutputY[Output]

Transmission Gate Implementation

graph LR
    Input0[Input I0] --> TransGate0[Transmission Gate 0]
    Input1[Input I1] --> TransGate1[Transmission Gate 1]

    TransGate0 --> OutputY[Output]
    TransGate1 --> OutputY

    SelectS[Select S] --> TransGate1
    SelectS --> NotGate[NOT Gate]
    NotGate --> TransGate0

Related Components

Demultiplexers: Perform the reverse operation (1-to-N routing)
Encoders: Convert multiple input lines to binary code
Decoders: Convert binary code to multiple output lines
Bus Transceivers: Bidirectional data transfer with direction control
Selectors: Similar to multiplexers but with different control logic
Crossbar Switches: Grid of multiplexers for flexible interconnection
Priority Encoders: Selects highest priority input
Digital Switches: Electronic equivalents of mechanical switches
Multiplexer Trees: Cascaded multiplexers for large input counts
Programmable Logic Arrays: Use multiplexers as building blocks

school Learning Path

arrow_back Prerequisites

AND Gate

OR Gate

NOT Gate

arrow_forward Next Steps

Multiplexer (4-to-1)

Demultiplexer (1-to-2)

help_outline Frequently Asked Questions

What is a multiplexer?

A multiplexer (MUX) selects one of several input signals and forwards it to a single output. The selection is controlled by select lines.

How does a 2-to-1 MUX work?

A 2-to-1 MUX has 2 data inputs (I0, I1), 1 select input (S), and 1 output (Y). When S=0, Y=I0; when S=1, Y=I1.

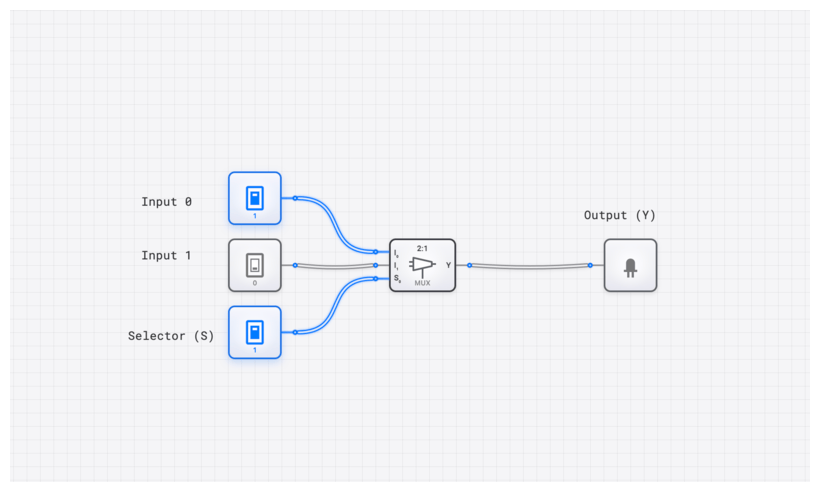

play_arrow Run Live Circuit
